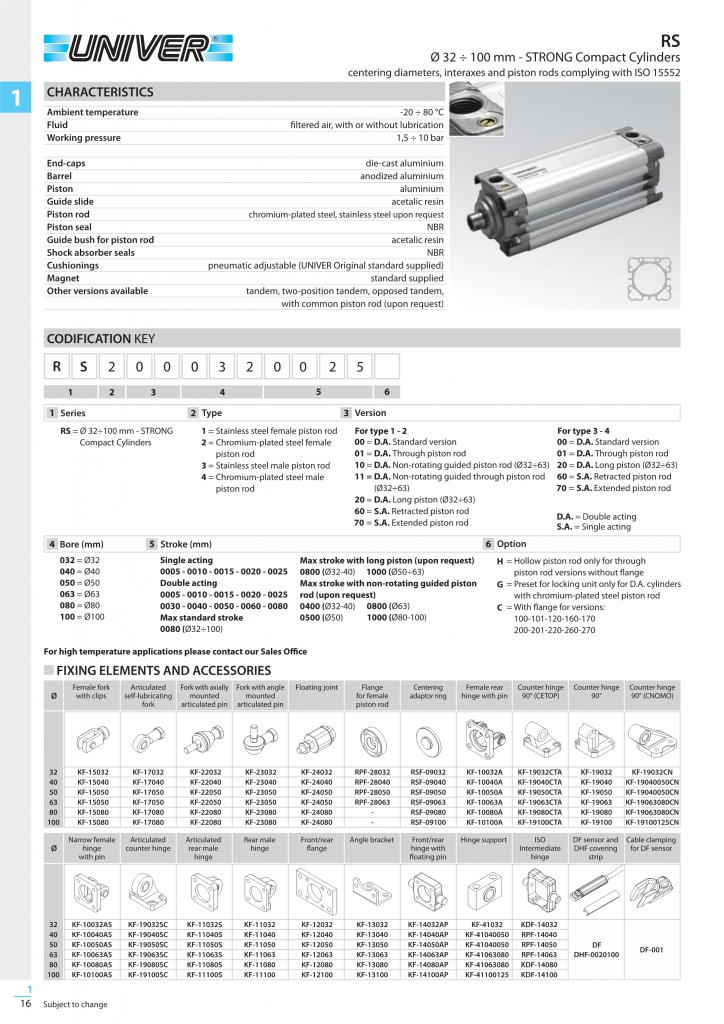

STRONG Compact Cylinders ? 32-63 mm
A new series of compact cylinders for long strokes and heavy-duty applications standard supplied with oversized guides and rods,?the first one with adjustable pneumatic cushioning without variations in size.?The inter-axes,?centering diameters and rods are in accordance with ISO 6431 and VDMA 24562 specifications.
| Working pressure | 1,5÷10 bar |
| Ambient temperature | -20 ÷ 80 °C |
| Fluid | ?filtered air, lubricated or non lubricated |
| Barrel? | aluminium extrusion |
| End-caps | aluminium die-cast |
| Piston rod | chromium-plated as standard |
| c | stainless steel AISI 303 (upon request) |
| Piston | aluminium |
| Seals | piston seal in nitrile rubber |
| c | piston rod seal in polyurethane |
| Magnetic version | standard supplied (Magnetic switch DF-… series) |
