Anti Backlash
齒條由方形不銹鋼棒制成，以減少摩擦并最大限度地減少間隙。齒條在帶有調節(jié)點的高科技聚合物套筒內(nèi)移動，以減少間隙。
氣動緩沖
端蓋標配獨特的機械阻尼墊和可調節(jié)的氣動緩沖。
角度調整
端蓋可帶或不帶用于角度旋轉調整的調整螺釘

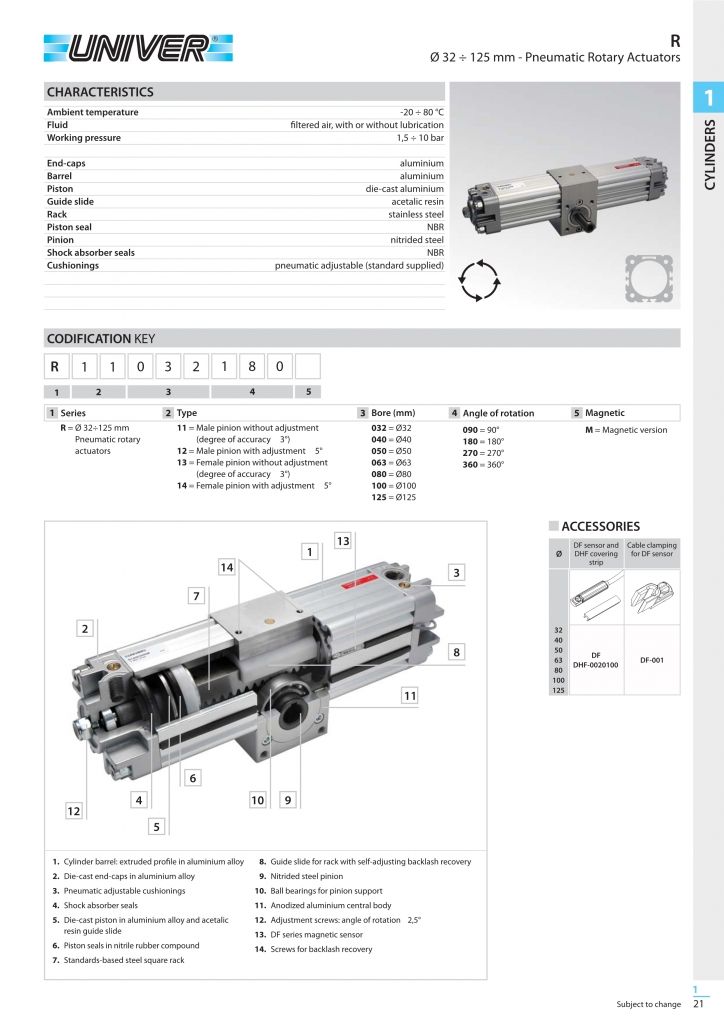

Rotary actuators ? 32-125 mm
The UNIVER rotary actuator incorporates several technology features which provide a higher degree of accuracy?and reliability.
The robust mechanical design expands application possibilities within modern day automation.
| Working pressure | 1,5÷10 bar |
| Ambient temperature | -20 ÷ 80 °C |
| Fluid | filtered air, lubricated or non lubricated |
| Barrel | aluminium extrusion |
| End-caps | aluminium die-cast |
| Body | aluminium |
| Rack | stainless steel |
| Pinion | nitrided stainless steel |
| Piston | aluminium |
| Seals | nitrile rubber |
| a | piston rod seal in polyurethane |
| Magnetic version | upon request (Magnetic switch DH -… series |
